Ocelot Access Setup¶

This guide explains how the Ocelot reverse proxy works with the LiveKit Platform Service (LKPS) and how to configure your application to access LKPS through Ocelot.

Table of Contents¶

What is Ocelot?
How Ocelot Works with LKPS
Prerequisites
Step 1 — Request Access to the LKPS Ocelot Route
Step 2 — Configure Your Application to Call LKPS via Ocelot
How Ocelot Authenticates Requests
Troubleshooting
Next Steps

What is Ocelot?¶

Ocelot ⧉ is Bayer's in-house reverse HTTP proxy. It provides:

Authentication — validates Microsoft Entra ID JWT tokens on every request
Identity injection — extracts claims from validated tokens and injects them as HTTP headers
Access control — restricts API access to specific authorized client applications
Infrastructure — deployed globally in both US and EU regions

LKPS uses Ocelot as its front door — all API requests to LKPS must pass through Ocelot.

Info

For full details on Ocelot concepts, configuration, and troubleshooting, see the official Ocelot documentation ⧉.

How Ocelot Works with LKPS¶

The flow:

Your application obtains an Entra ID JWT token targeting the LKPS audience — use the environment-specific scope (api://livekit-platform-service-np.int.bayer.com/.default for non-prod, api://livekit-platform-service.int.bayer.com/.default for prod) in the client credentials flow.
Your application sends the API request to the LKPS Ocelot URL with the token in the Authorization header.
Ocelot validates the JWT signature and expiration.
Ocelot checks that your app's client ID is in the route's Client Access List.
Ocelot extracts identity claims from the JWT and injects them as HTTP headers.
Ocelot forwards the request (with injected headers) to LKPS.
LKPS processes the request using the identity headers — it does not re-validate the JWT.

Prerequisites¶

Before proceeding, ensure you have completed:

BEAT registration
Entra ID App Registration with a client ID and secret
Ocelot Users group membership — required to view Ocelot routes. Verify or request access:
Non-prod: devtools-np.bayer.com/profile/applications/OCELOT ⧉
Prod: devtools.bayer.com/profile/applications/OCELOT ⧉

Step 1 — Request Access to the LKPS Ocelot Route¶

The LKPS Ocelot routes are already configured and managed by the Bayer LiveKit Platform Team ⧉.

This is a self-service process — simply add your application's Entra client ID to the route's Client Access List via the Ocelot UI.

Who Needs to Request Access?¶

Role	Needs access to	Purpose
Agent developers	LKPS Ocelot route	To call `/api/agent/register` for agent registration
Client app developers	LKPS Ocelot route	To call `/api/session/start` for session management

Both agent developers and client application developers follow the same self-service process described below.

1.1 — Navigate to the LKPS Route in Ocelot¶

Open the Ocelot route page for the environment and region you need:

Environment	Region	Ocelot Route URL
Non-Prod	EU	eu-livekit-platform-service-np.int.bayer.com ⧉
Non-Prod	US	us-livekit-platform-service-np.int.bayer.com ⧉
Prod	EU	eu-livekit-platform-service.int.bayer.com ⧉
Prod	US	us-livekit-platform-service.int.bayer.com ⧉

Tip

Start with a non-prod route during development. You can request prod access later when you are ready to go live.

Once you open the route page, you will see the route details including the host URL, security settings, and the list of currently approved clients.

1.2 — Click "Request Access"¶

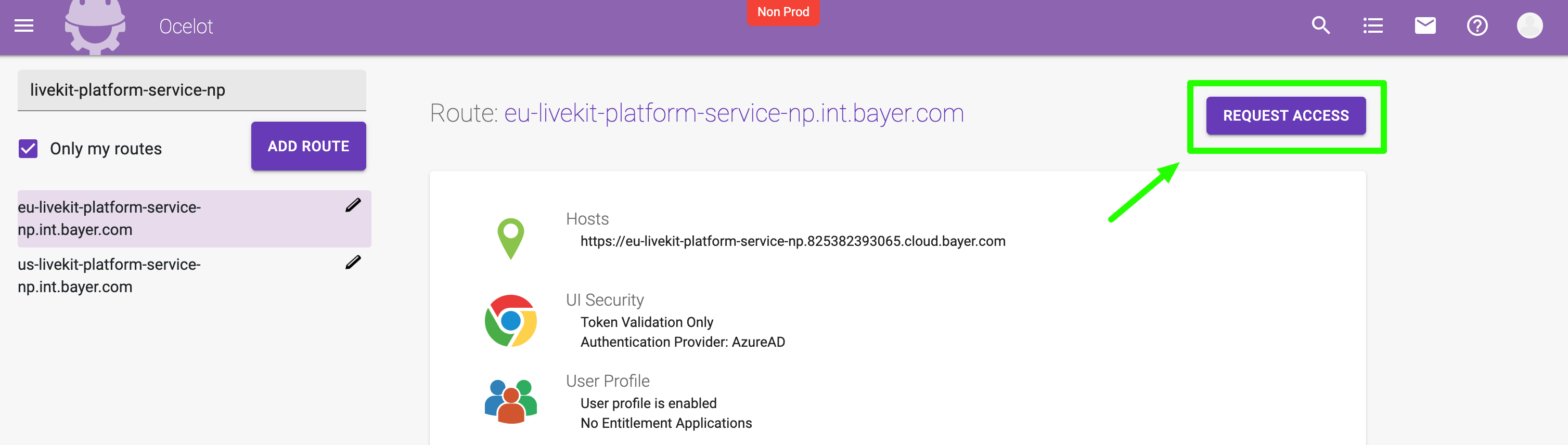

Click the REQUEST ACCESS button located in the top-right corner of the route page.

1.3 — Select Your Client Application¶

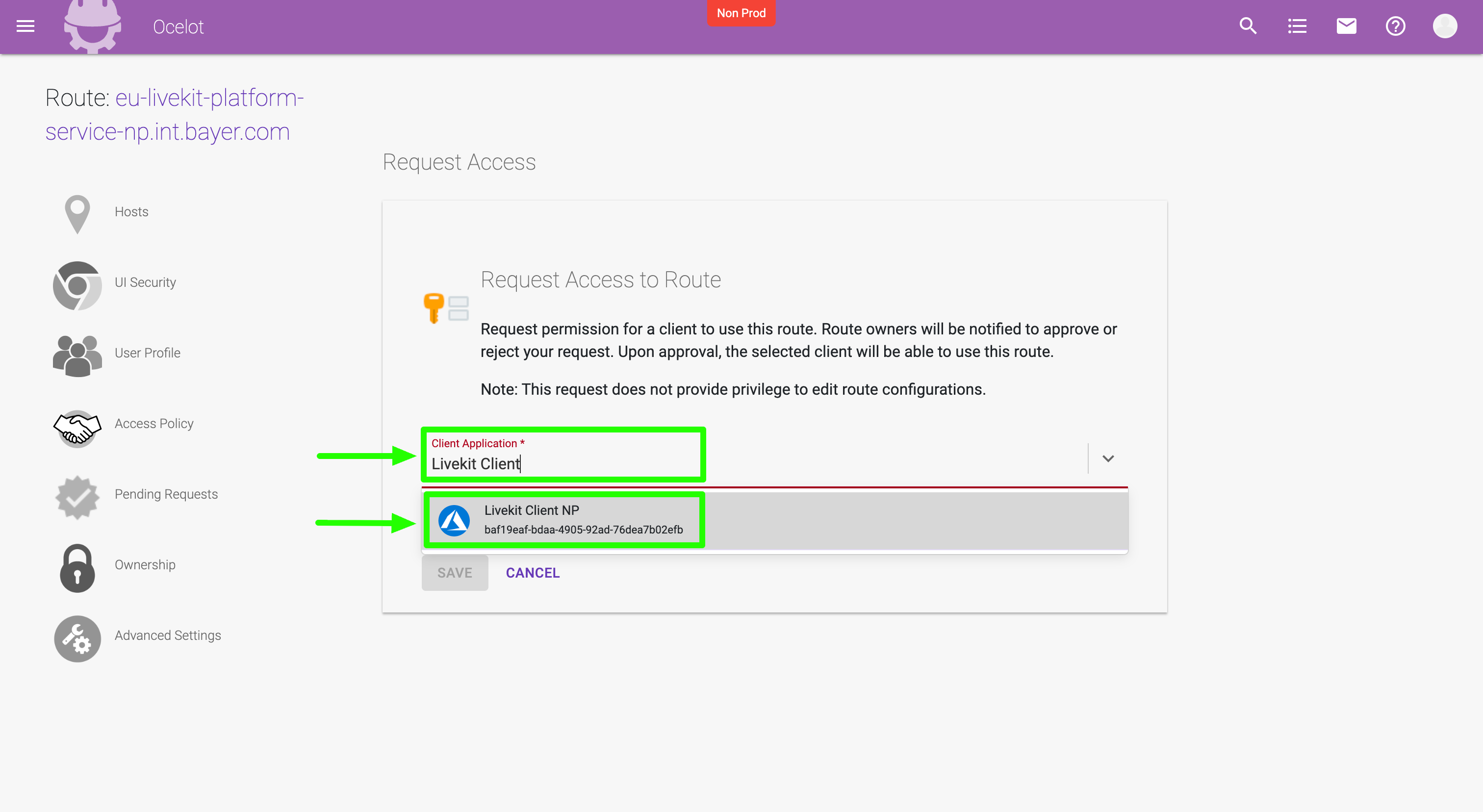

In the Request Access to Route dialog:

Open the Client Application dropdown.
Search for and select your Entra app registration (by name or client ID).

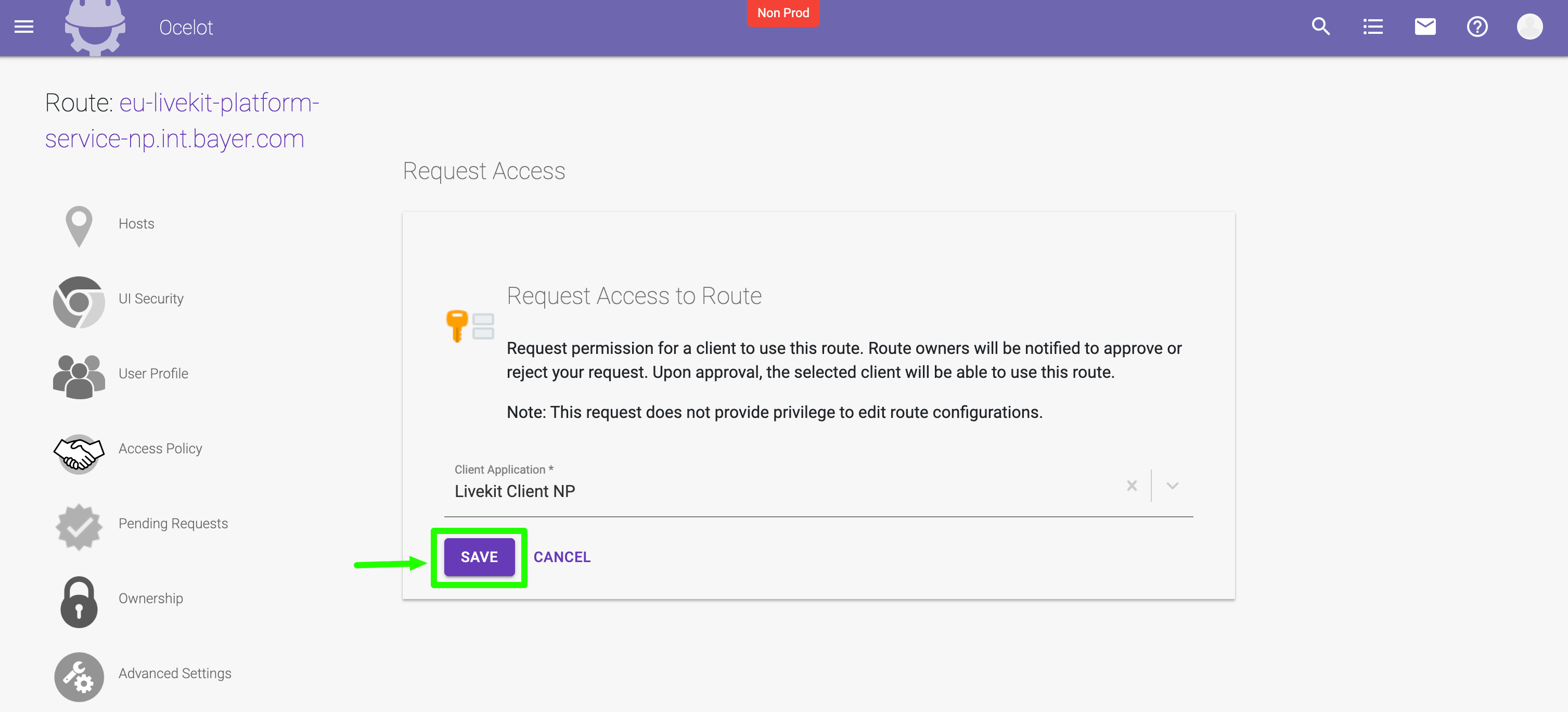

Click SAVE to submit the request.

Note

Your Entra app registration must already exist and have at least one client secret, redirect URI, or federated credential configured — otherwise it will not appear in the dropdown. If you haven't created one yet, see Prerequisites — Step 2.

1.4 — Wait for Approval¶

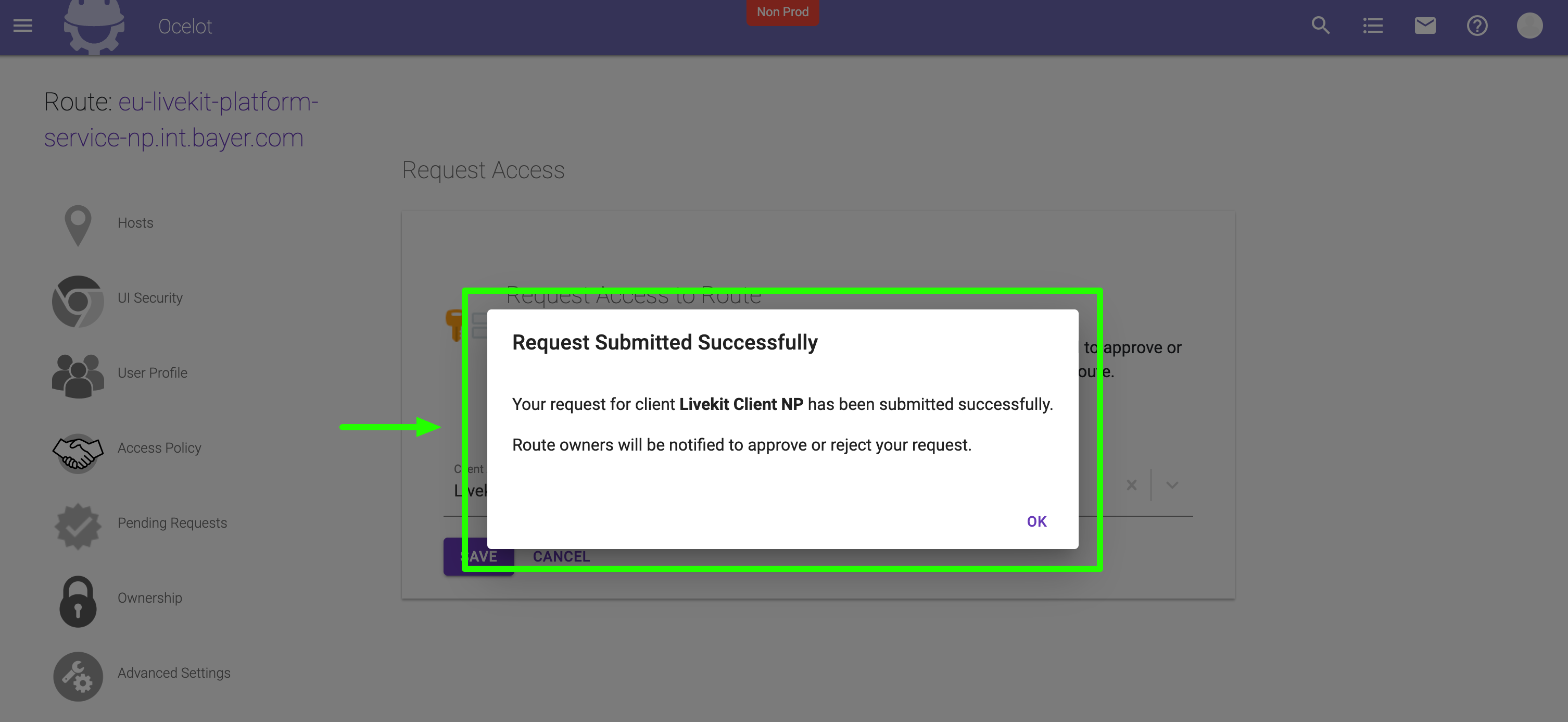

After submitting, you will see a confirmation that the request was submitted successfully. The route owners (Bayer LiveKit Platform Dev Team) will be notified via email and will review your request.

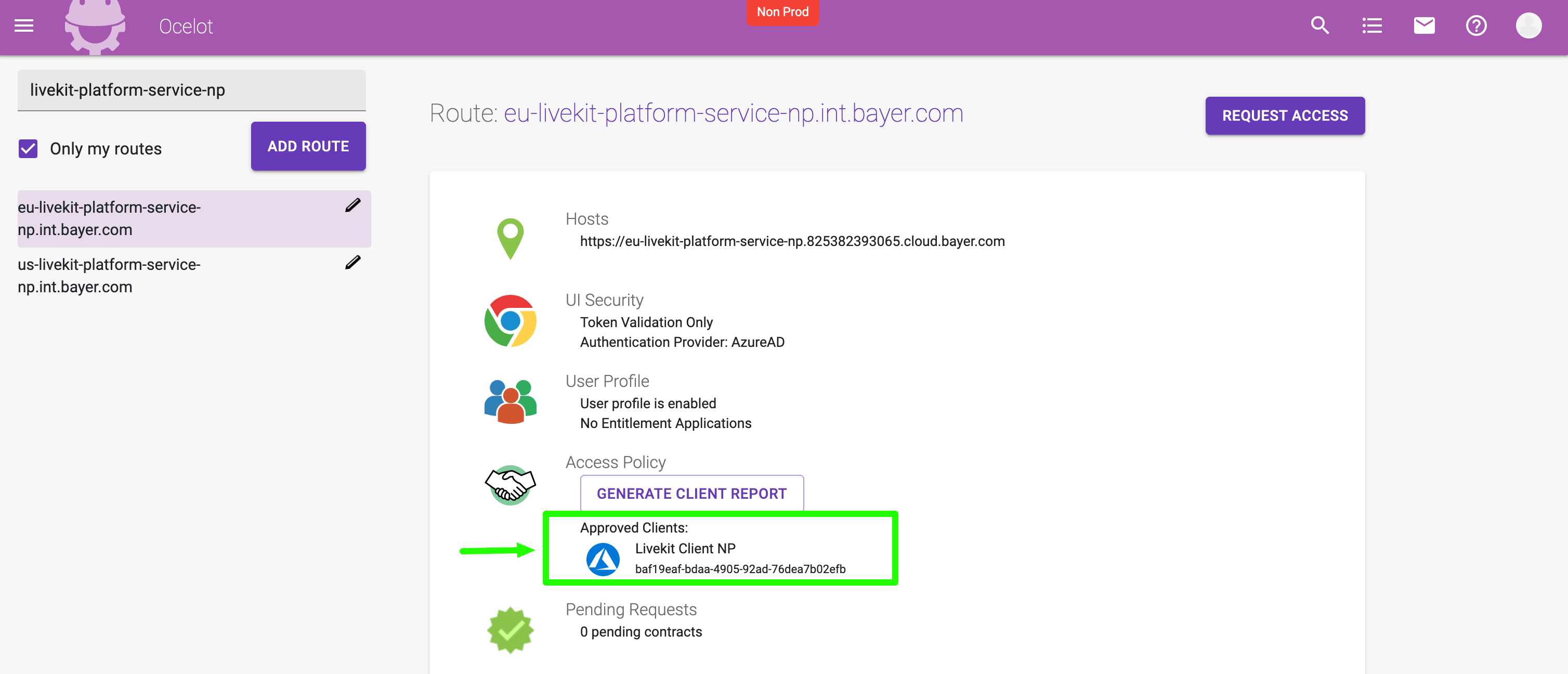

Once approved, your application's client ID will appear in the Approved Clients list on the route page.

Important

You need to request access separately for each environment and region you plan to use.

Note

Adding your client ID to the Ocelot route grants network-level access to LKPS. Application-level authorization (whether your client can connect to a specific agent) is controlled separately via Client-to-Agent Authorization.

Step 2 — Configure Your Application to Call LKPS via Ocelot¶

Once your client ID is added to the Ocelot route, configure your application to call LKPS through the Ocelot-protected URL.

Obtain an Entra ID Access Token¶

Your application must acquire a token targeting the LKPS API audience before making any API call.

Token request (client credentials flow):

POST https://login.microsoftonline.com/fcb2b37b-5da0-466b-9b83-0014b67a7c78/oauth2/v2.0/token
Content-Type: application/x-www-form-urlencoded

grant_type=client_credentials
&client_id=<your-app-client-id>
&client_secret=<your-app-client-secret>
&scope=api://livekit-platform-service-np.int.bayer.com/.default

Parameter	Value
`client_id`	Your app's Entra client ID
`client_secret`	Your app's Entra client secret
`scope`	`api://livekit-platform-service-np.int.bayer.com/.default` (non-prod) `api://livekit-platform-service.int.bayer.com/.default` (prod)

Make API Calls via Ocelot¶

Include the token in the Authorization header:

POST https://eu-livekit-platform-service-np.int.bayer.com/api/session/start
Authorization: Bearer <entra-access-token>
Content-Type: application/json

{
  "agent_entra_app_id": "426758d8-100a-4420-9ae2-5f17e44f7df4"
}

See Environments & URLs for the full list of LKPS endpoints per region and environment.

How Ocelot Authenticates Requests¶

When a request reaches Ocelot, it performs the following:

JWT validation — verifies the token signature, issuer, audience, and expiration.
Client Access List check — confirms the token's appid claim is in the route's authorized list.
Claims extraction — pulls identity information from the validated JWT.
Header injection — adds the following headers to the forwarded request:

Injected Header	Source (Entra JWT Claim)	Description
`user-id`	`oid`	User's Object ID (for user-delegated tokens)
`client-id`	`appid`	Application (client) ID of the calling app
`x-bayer-user`	`email`	User's email address
`user-profile`	Assembled from claims	JSON object with `firstName`, `lastName`, `displayName`, `email`, `user_id`

Note

LKPS trusts these proxy-injected headers and does not re-validate the Entra JWT. This is a standard pattern for services behind Ocelot.

Troubleshooting¶

401 Unauthorized¶

Possible cause	Resolution
Expired or invalid Entra JWT	Ensure your token is fresh and targets the correct audience — `api://livekit-platform-service-np.int.bayer.com` for non-prod, `api://livekit-platform-service.int.bayer.com` for prod
Token does not target the LKPS audience	Verify the `scope` parameter in your token request

403 Forbidden (from Ocelot)¶

Possible cause	Resolution
Client ID not in the Ocelot route's Client Access List	Request access to the Ocelot route for your environment
Wrong environment	Ensure you are using the correct URL for your environment (non-prod vs. prod)

403 Forbidden (from LKPS)¶

Possible cause	Resolution
Client not authorized for the target agent	See Client-to-Agent Authorization — the agent owner must add your client ID to `preAuthorizedApplications`

Unable to Access Ocelot UI¶

Possible cause	Resolution
No access to the Ocelot UI	Request membership — join the Ocelot Users group via the DevTools application page

Next Steps¶

Next	Guide
Configure Entra ID for your agent or client app	Client-to-Agent Authorization
Start building an agent	Agent Developer Guide
Integrate a client application	Client Developer Guide
